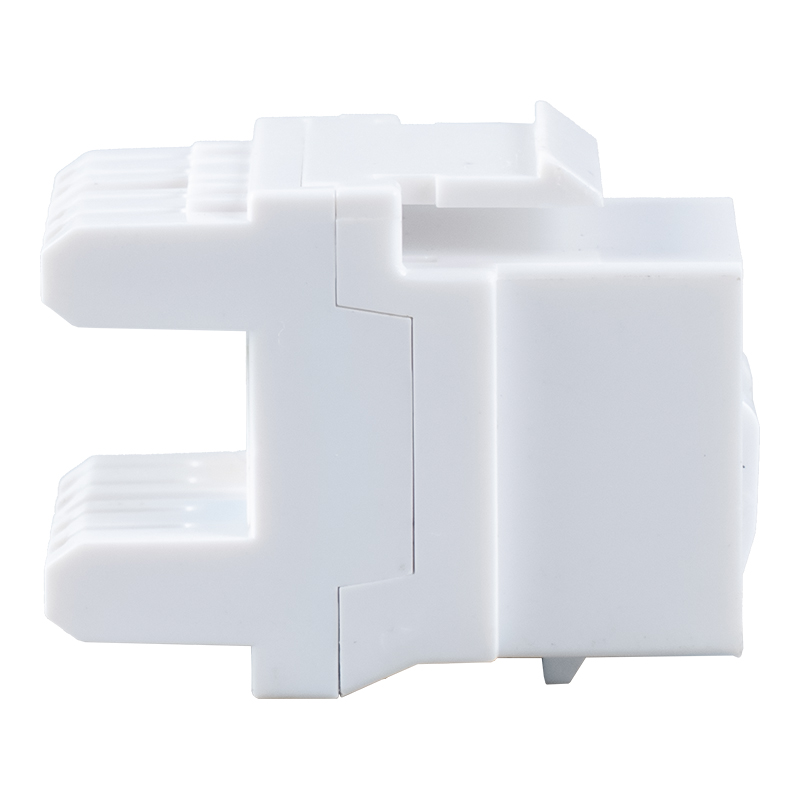

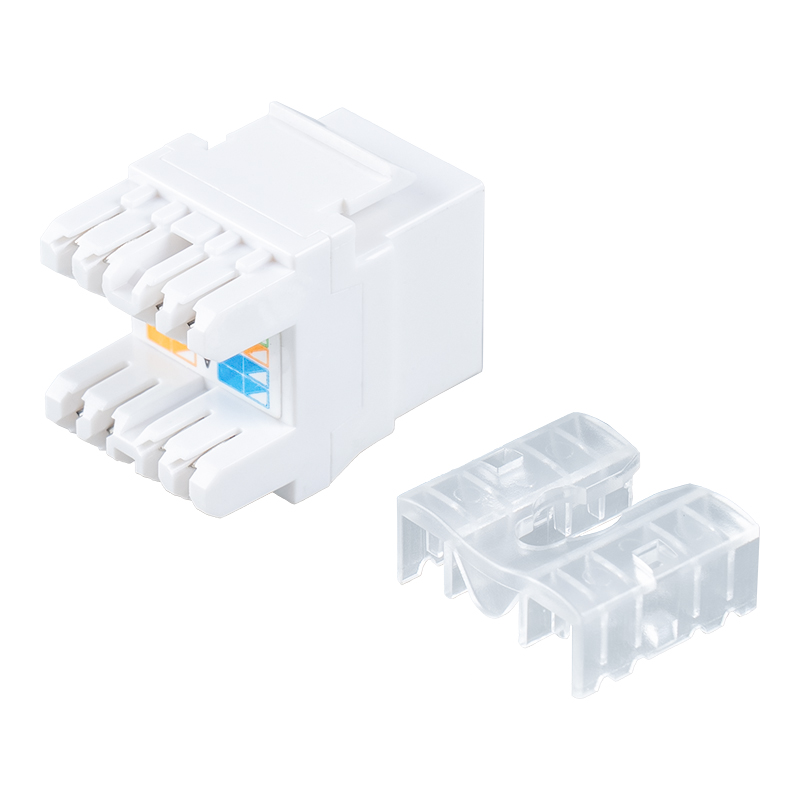

The Cat6 Unshielded 180° Modular Jack (mini-type with shutter) is an RJ45 female connector module designed specifically for Cat6 unshielded twisted-pair (UTP) cable. It features a white polycarbonate (PC) plastic shell, with internal phosphor bronze metal contacts plated with a 3µin gold coating, ensuring low contact resistance (≤20mΩ) and excellent oxidation resistance. The module utilizes a mini-type structure with a 180° insertion angle, making it compact and suitable for use in space-constrained panels, patch panels, or cabinets. The shutter design automatically closes when not in use, providing dust and moisture protection and enhancing long-term reliability. The product has obtained multiple international certifications including CE, ISO, RoHS, and UL, complies with TIA/EIA-568A/B standards, supports bandwidths above 250MHz, and meets the requirements of Gigabit Ethernet and some 10 Gigabit Ethernet connections.
Advantages
1. Superior Conductivity: Gold-plated phosphor bronze contacts provide low contact resistance (≤20mΩ) and high conductivity, ensuring signal integrity; insulation resistance ≥250MΩ (100VDC).
2. 180° Mini-Type Design: Utilizing a 180° cabling angle, cables can be directly inserted from the side of the module, saving space and simplifying cabling layout, especially suitable for high-density patch panels and cabinet interiors.
3. Shutter Protection: Built-in automatically closing shutter effectively prevents dust and foreign objects from entering the jack, improving long-term stability and safety.
4. High Reliability Mechanical Life: RJ45 jack life ≥750 mating cycles, IDC (crimping) life ≥250 cycles, meeting the needs of high-frequency replacement or maintenance.
