Ningbo Betterbell Telecommunication Equipment Co., Ltd. (BTBL), founded in 2002 and located in Ningbo, China, enjoys convenient transportation, with close proximity to Ningbo and Shanghai seaports as well as major airports. We specialize in the R&D and manufacturing of structured cabling products, with core offerings including Toolless Plugs, Keystone Jacks, and Patch Panels, widely applied in data centers, office networks, and industrial communications. BTBL holds independent intellectual property rights and import/export licenses, and is committed to delivering high-quality, high-performance connectivity solutions to customers worldwide.

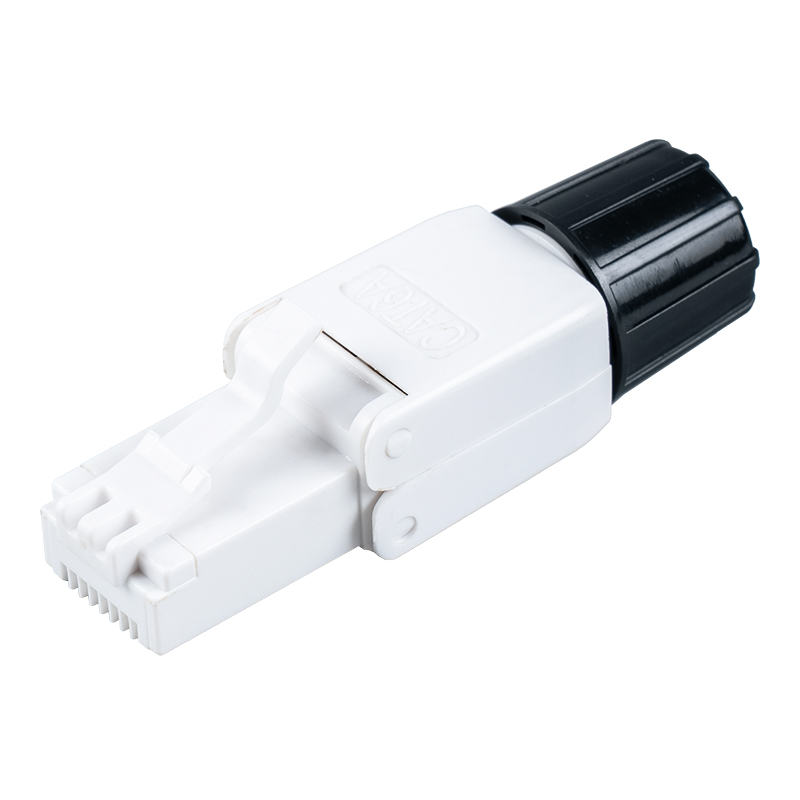

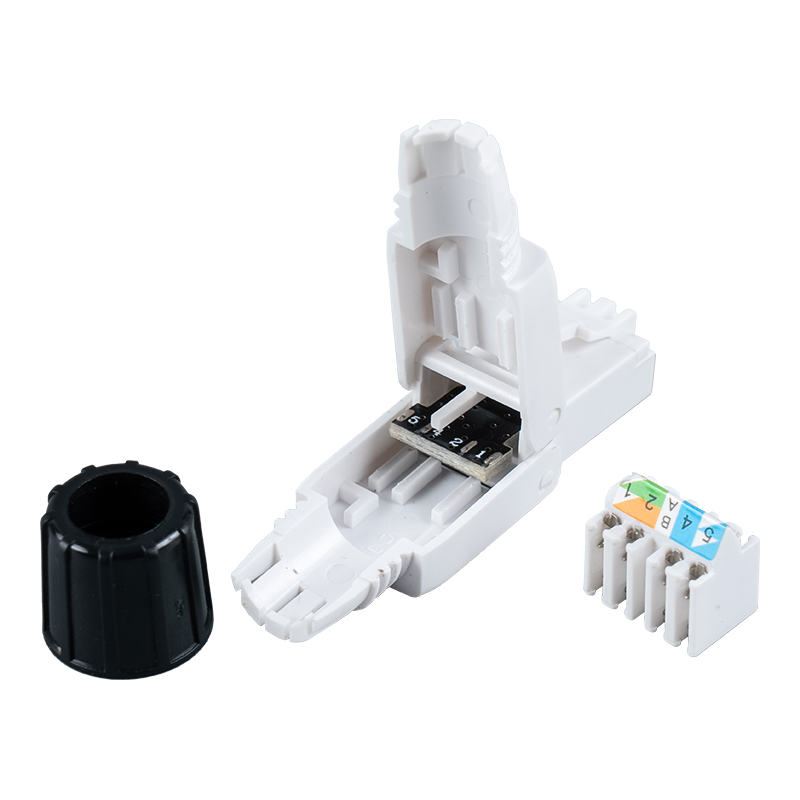

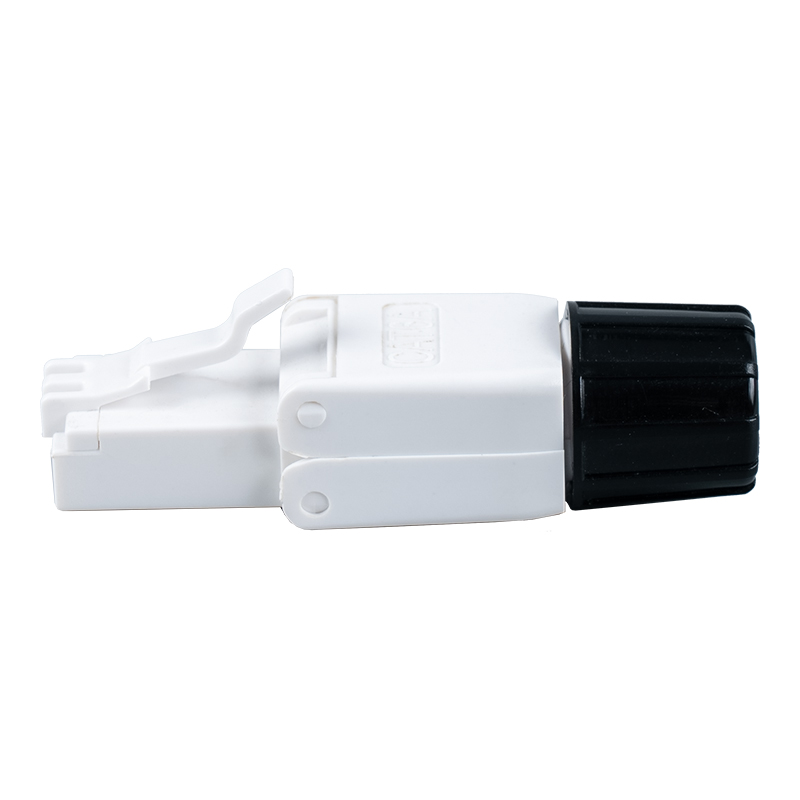

The Cat6A Unshielded Toolless RJ45 Connector (with screw) is a plug-and-play RJ45 modular connector designed specifically for Cat6A unshielded Ethernet cables. It features a zinc alloy shell with a PC plastic snap-fit structure, providing robust mechanical support. Internal contacts are made of phosphor bronze with a zinc plating finish, ensuring low contact resistance (20mΩ) and excellent corrosion resistance. The product complies with T568A/T568B cabling standards and has obtained multiple international certifications including CE, ISO, RoHS, and UL. It supports transmission frequencies up to 500MHz, enabling high-speed Ethernet transmission up to 10Gbps.
Advantages:
1. High Reliability: Contact resistance of only 20mΩ, insulation resistance ≥500MΩ (100VDC), withstand voltage DC1000V / AC700VRMS, mating life ≥750 cycles, meeting industrial-grade requirements.
2. Superior Materials: Zinc alloy shell provides excellent protection, phosphor bronze contacts are zinc-plated for corrosion resistance, and PC plastic snap-fit structure enhances mechanical strength, complying with CE, ISO, RoHS, UL and other safety standards.
3. Wide Temperature Adaptability: Operating temperature -10°C to +60°C, storage temperature -40°C to +70°C, suitable for harsh environments.
4. Multi-Wire Gauge Compatibility: Supports solid/stranded cables, compatible with 22AWG, 23AWG, and 24AWG specifications to meet different cabling needs.
5. Optional Colors: Available in black and white for easy color identification and aesthetic uniformity on racks or panels.
