Ningbo Betterbell Telecommunication Equipment Co., Ltd. (BTBL), founded in 2002 and located in Ningbo, China, enjoys convenient transportation, with close proximity to Ningbo and Shanghai seaports as well as major airports. We specialize in the R&D and manufacturing of structured cabling products, with core offerings including Toolless Plugs, Keystone Jacks, and Patch Panels, widely applied in data centers, office networks, and industrial communications. BTBL holds independent intellectual property rights and import/export licenses, and is committed to delivering high-quality, high-performance connectivity solutions to customers worldwide.

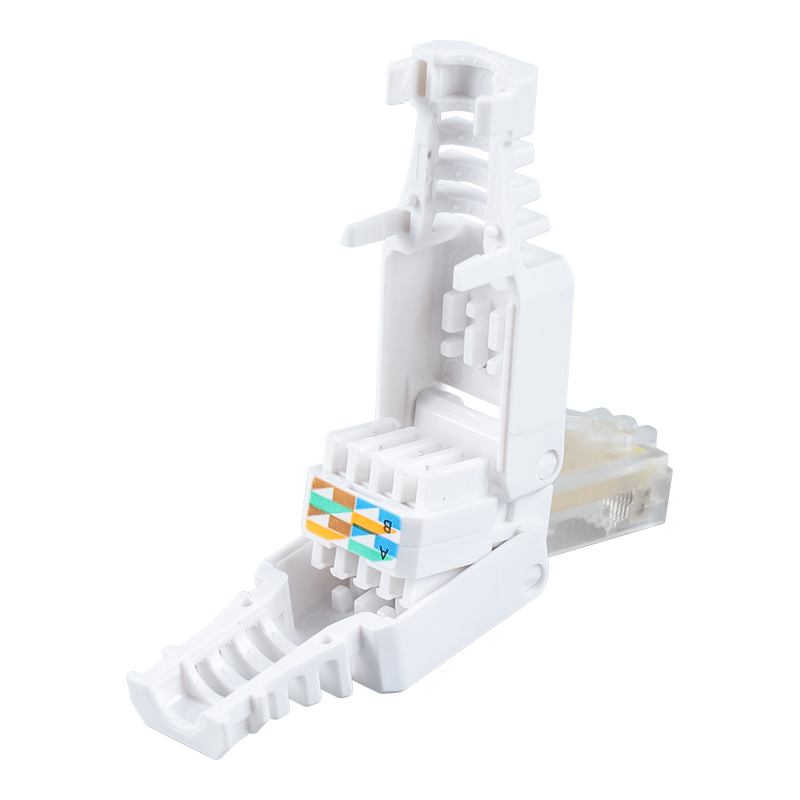

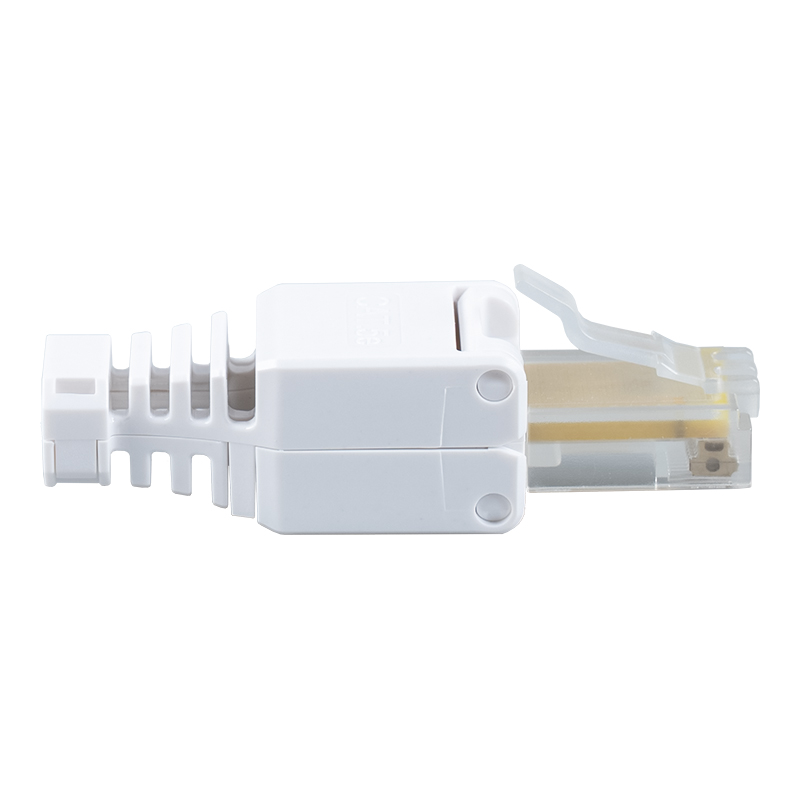

The Cat5e Unshielded Toolless RJ45 Connector is a tool-free crimp-type RJ45 modular socket designed specifically for unshielded Cat5e network cabling. It features a high-temperature fire-resistant plastic (PC/ABS) shell and internal contacts made of phosphor bronze with a 3µin gold plating, ensuring low contact resistance (≤20mΩ) and excellent conductivity. This connector supports T568A/T568B bidirectional cabling standards, is compatible with 22AWG, 23AWG, and 24AWG solid or stranded copper wire, has a mating life of ≥750 cycles, insulation resistance ≥100MΩ (100VDC), and a withstand voltage of 1000VDC. Its operating temperature range is -10°C to +60°C, and its storage temperature range is -40°C to +70°C. The product has obtained multiple international certifications, including CE, ISO, RoHS, and UL, ensuring environmental friendliness and safety.
Advantages
1. High Insulation and Withstand Voltage: Insulation resistance ≥100MΩ (100VDC) and withstand voltage rating of 1000VDC / 700VAC, suitable for harsh industrial and commercial environments.
2. Durable Mechanical Performance: RJ45 interface lifespan ≥750 cycles, IDC terminal lifespan ≥250 cycles, meeting the needs of frequent plugging and unplugging in industrial applications.
3. Wide Temperature Adaptability: Storage temperature range of -40°C to +70°C and operating temperature range of -10°C to +60°C, suitable for various environments (computer rooms, industrial sites, outdoor cabling).
4. Low Contact Resistance and Stable Transmission: Gold-plated 3U pins control contact resistance below 20mΩ, ensuring low loss and high reliability for Gigabit Ethernet.
5. High Durability: Design lifespan ≥750 plugging and unplugging cycles, IDC terminal lifespan ≥250 cycles, meeting long-term use requirements and reducing maintenance costs.
