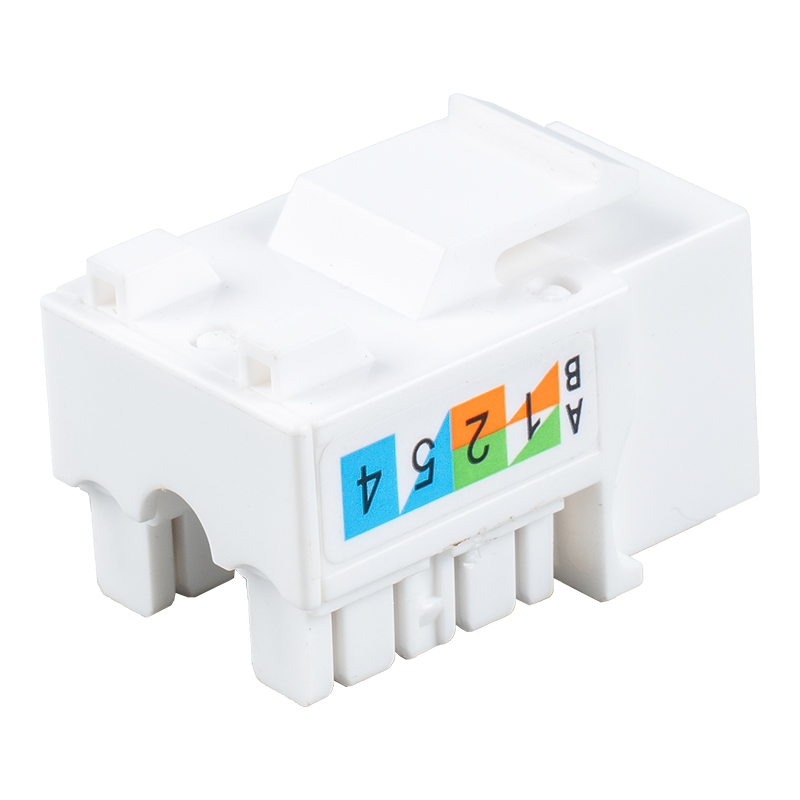

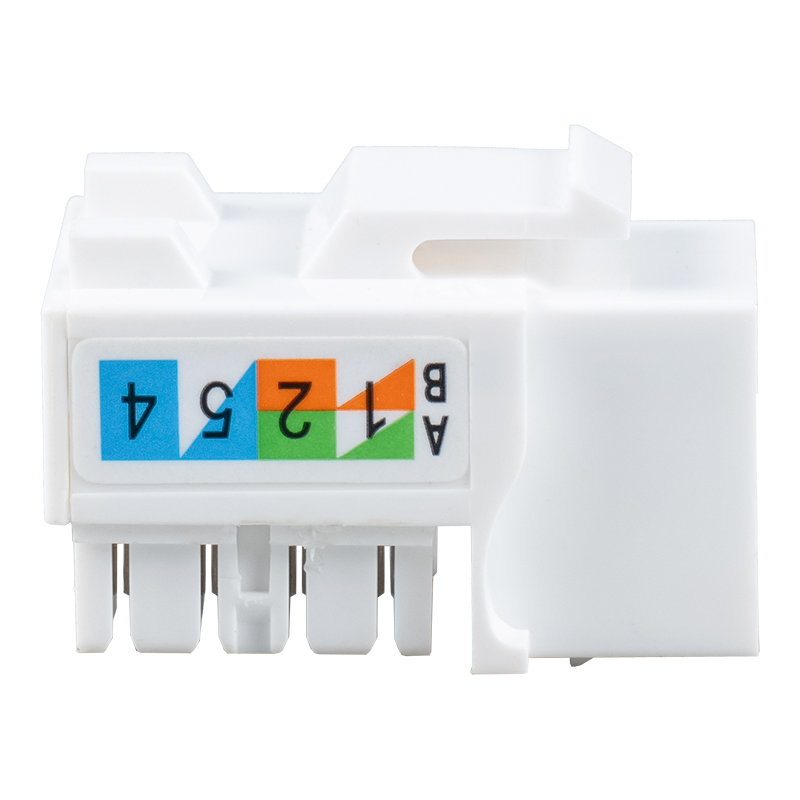

The Cat5e Unshielded 90° Modular Jack (model SM-2016H8C5E) is an RJ45 modular socket designed specifically for Gigabit Ethernet cabling. It features a white, high-flame-retardant PC (UL94-V0) housing, a standard 8P8CRJ45 female connector on the front, and eight crimp-type IDC terminals on the rear, supporting 22AWG, 23AWG, and 24AWG solid or stranded copper wire, and is compatible with both T568A and T568B cabling standards.
Advantages
1. High space utilization: The 90° angle allows for easy installation on narrow patch panels or panels, avoiding space conflicts caused by 180° terminals.
2. Reliable electrical performance: Low connection resistance (20mΩ) and high insulation resistance (≥100MΩ) ensure signal integrity, meeting Gigabit Ethernet transmission requirements.
The combination of gold plating and phosphor bronze contacts provides oxidation resistance and low contact impedance, improving long-term stability.
3. Wide compatibility: Supports solid and twisted wires, 22~24AWG specifications, compatible with both T568A and T568B cabling standards, suitable for new or renovation projects.
4. Wide applicability: Can be used in various network cabling scenarios such as YH series panels, patch boxes, and patch panels, meeting diverse needs of enterprises, data centers, and building integrated cabling.
