Ningbo Betterbell Telecommunication Equipment Co., Ltd. (BTBL), founded in 2002 and located in Ningbo, China, enjoys convenient transportation, with close proximity to Ningbo and Shanghai seaports as well as major airports. We specialize in the R&D and manufacturing of structured cabling products, with core offerings including Toolless Plugs, Keystone Jacks, and Patch Panels, widely applied in data centers, office networks, and industrial communications. BTBL holds independent intellectual property rights and import/export licenses, and is committed to delivering high-quality, high-performance connectivity solutions to customers worldwide.

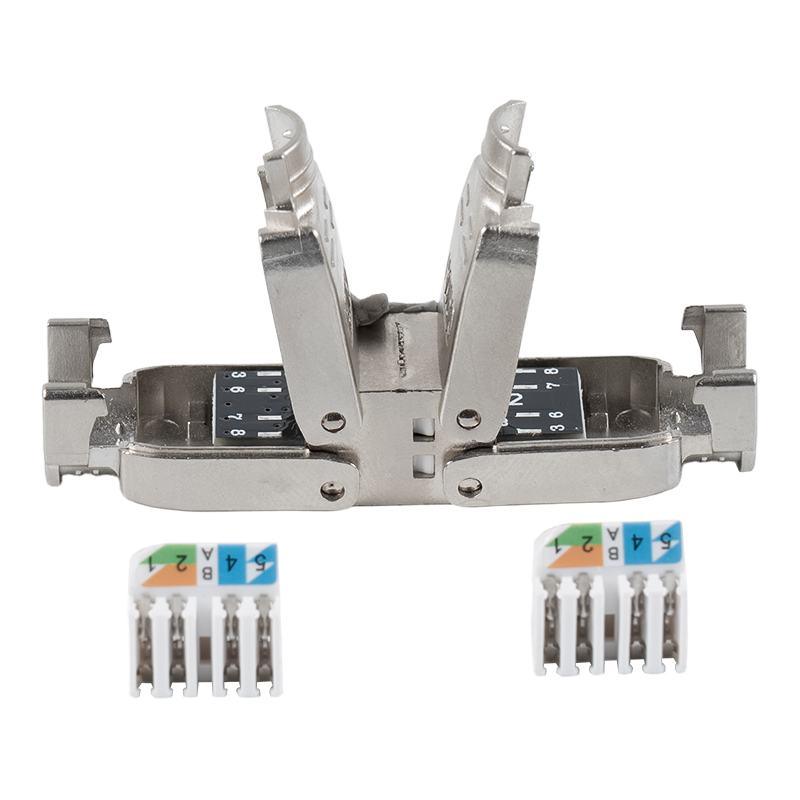

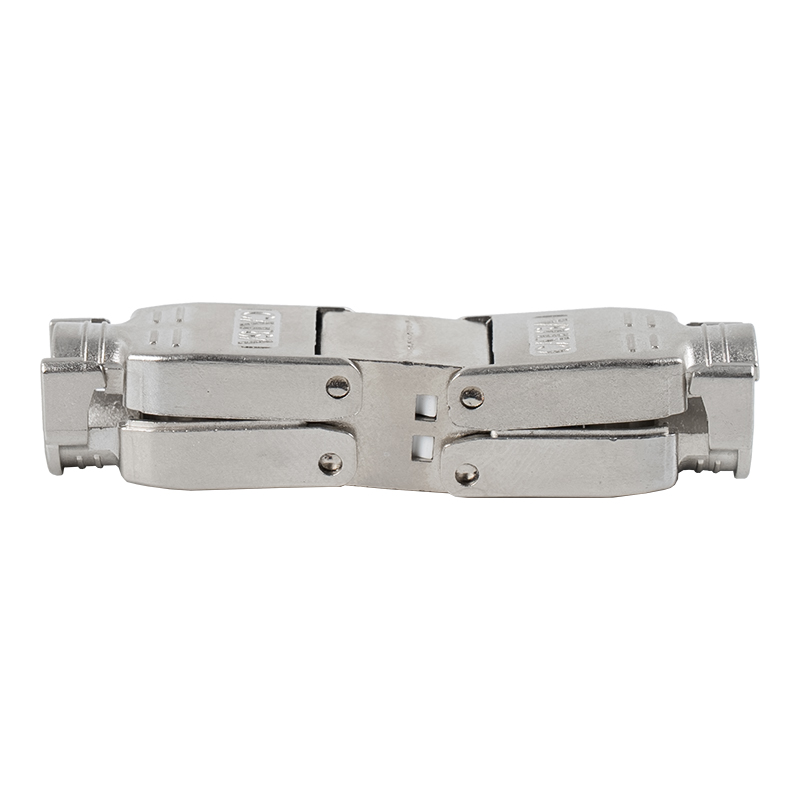

The Cat6A Shielded Push-down Type Toolless Connector is a metal-shielded connector designed specifically for high-speed Ethernet cabling. It features a nickel-plated zinc alloy shell and phosphor bronze zinc-plated terminal pins, enabling reliable connections for 10Gbps, 500MHz transmission. Its tool-less crimping design allows for easy conductor crimping by simply pushing down, eliminating the need for specialized crimping pliers and significantly improving field installation efficiency. The product complies with T568A/T568B standards and is CE, ISO, RoHS, and UL certified. It is suitable for shielded twisted-pair (SFTP/STP) cable and 22-24AWG (0.20-0.51mm²) network cabling.
Advantages:
1. High Near-End Crosstalk (NEXT) Performance: The BelStewart SS-39200 Series Shielded Connectors significantly exceed TIA/IEC limits in near-end crosstalk (NEXT) performance, ensuring low crosstalk characteristics for 10Gbps transmission.
2. Metal casing + dust cover: The metal casing provides mechanical strength, and the matching metal casing + metal clips enhance long-term reliability.
3. Quick Positioning and Wiring Sequence Check: Some models use a pass-through structure, allowing full visibility of the wire cores for easy inspection before crimping, further reducing the risk of incorrect connections.
4. High-Density Installation: The snap-on design is compact and can be directly inserted into 14.9mm × 19.8mm (W × H) panel holes, compatible with 1U 24-port high-density patch panels.
5. Lifetime Limited Warranty: Some brands offer a lifetime limited warranty, enhancing user confidence in product quality.
