Ningbo Betterbell Telecommunication Equipment Co., Ltd. (BTBL), founded in 2002 and located in Ningbo, China, enjoys convenient transportation, with close proximity to Ningbo and Shanghai seaports as well as major airports. We specialize in the R&D and manufacturing of structured cabling products, with core offerings including Toolless Plugs, Keystone Jacks, and Patch Panels, widely applied in data centers, office networks, and industrial communications. BTBL holds independent intellectual property rights and import/export licenses, and is committed to delivering high-quality, high-performance connectivity solutions to customers worldwide.

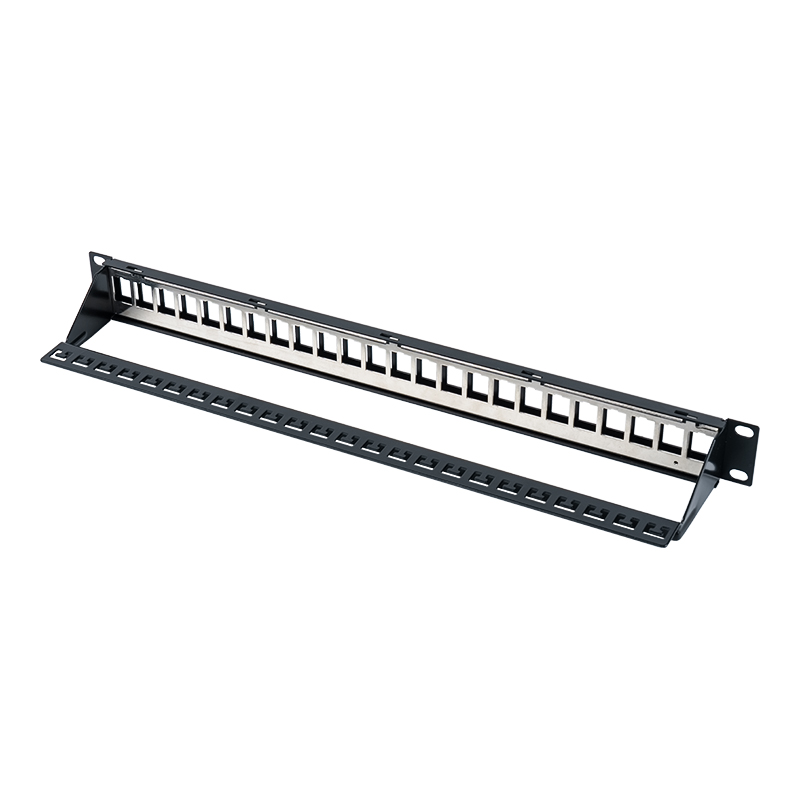

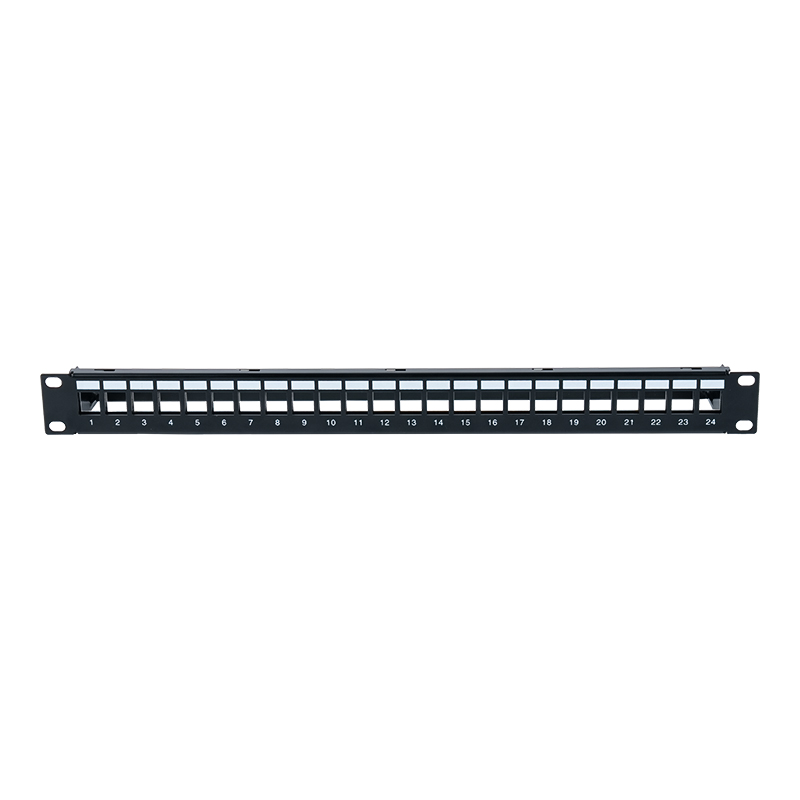

The 19-inch 1U 24-port shielded air distribution frame is a high-density network patch panel designed specifically for 19-inch standard server racks. Featuring a 1U (approximately 44mm) ultra-thin structure, it allows for centralized management of 24 RJ45 keystone jacks within a limited space. The patch panel body is made of all-metal cold-rolled steel plate with a black painted front and nickel-plated cold-rolled steel plate for the cable management channels on the back, combining corrosion resistance and aesthetics. The product is available in two delivery options: blank panels (with self-installed keystone jacks) or pre-installed keystone jacks. It supports CAT5E, CAT6, and CAT6A UTP and FTP dual-mode cables, meeting various network cabling needs.
Advantages:
1. High-quality materials, reliable and durable: The combination of cold-rolled steel plate, black paint, and nickel-plated cable management channels provides excellent corrosion resistance, dustproofing, and impact resistance, suitable for long-term operation in data center environments.
2. Full Compatibility: Supports both UTP and FTP dual-mode cables, compatible with CAT5E, CAT6, and CAT6A, meeting transmission requirements from Gigabit to 10GbE and above.
3. Panel Material: SPCC cold-rolled steel plate, black powder-coated front panel, nickel-plated cable management channels.
4. Operating Temperature: -20℃~+60℃, Storage Temperature: -40℃~+70℃.
5. Electrical Performance: Rated current 1.5A, contact resistance ≤100mΩ (500VDC), insulation resistance ≥1000MΩ.
6. Mating/Removal Life: ≥750 cycles (front-end RJ45 mating/removal), ≥200 cycles (rear-end IDC).
