Home · Products · Keystone Jack · C6A unshielded 180° tool-free module (adjustable wire diameter at the rear) SM-2342H8C6A

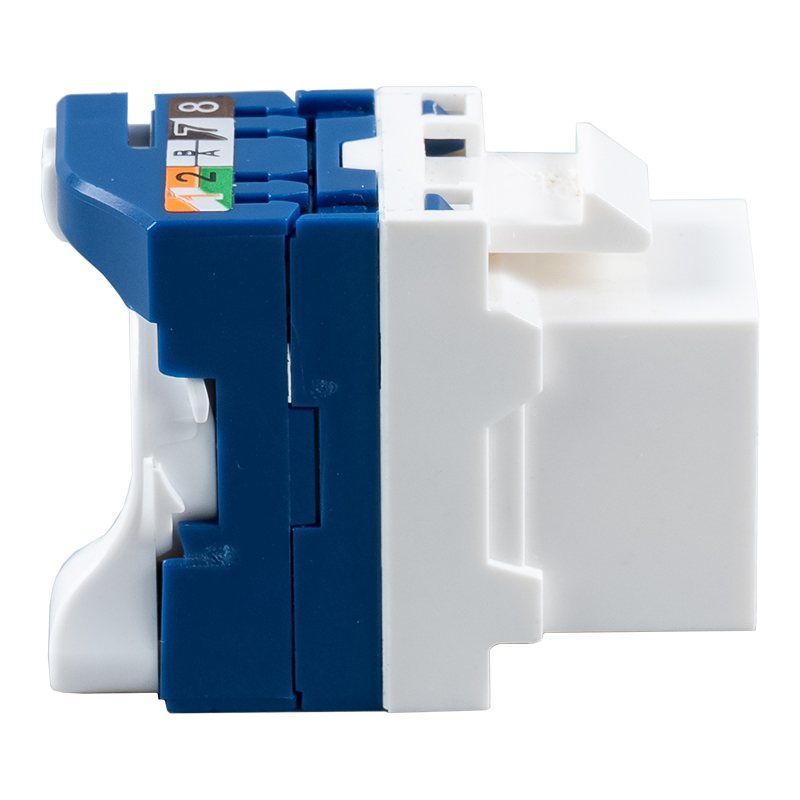

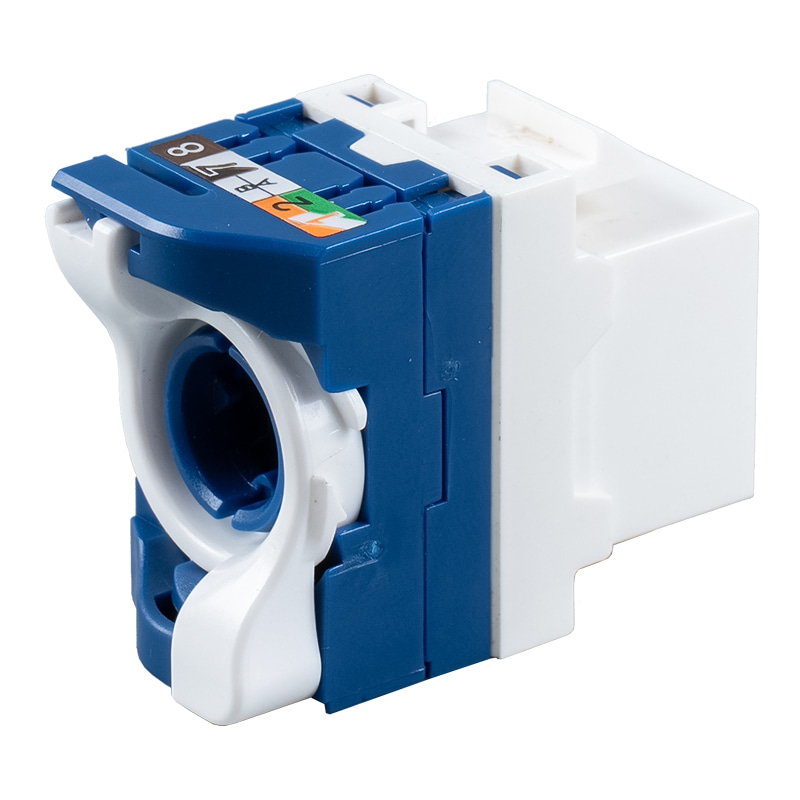

wholesale C6A unshielded 180° tool-free module (adjustable wire diameter at the rear) SM-2342H8C6A

  • C6A unshielded 180° tool-free module (adjustable wire diameter at the rear) SM-2342H8C6A
  • C6A unshielded 180° tool-free module (adjustable wire diameter at the rear) SM-2342H8C6A
  • C6A unshielded 180° tool-free module (adjustable wire diameter at the rear) SM-2342H8C6A
  • C6A unshielded 180° tool-free module (adjustable wire diameter at the rear) SM-2342H8C6A
  • C6A unshielded 180° tool-free module (adjustable wire diameter at the rear) SM-2342H8C6A
  • C6A unshielded 180° tool-free module (adjustable wire diameter at the rear) SM-2342H8C6A
  • Product Details
  • FAQ

● Toolless Termination

Quick tool-free termination

● 10-Gigabit Performance

Complies with Cat6A/Class EA standards for 10Gbps Ethernet and 500MHz frequency bandwidth.

● 180° Straight Cable Entry

Horizontal 180° cable entry design allows neat routing and easy installation in limited spaces.

● Unshielded Design

Ideal for standard office and educational environments.

● Robust Construction

Durable, flame-retardant PC housing (UL94V-0) ensures long-term reliability.

● Universal Compatibility

Compatible with standard keystone wall plates, patch panels, and modular faceplates.

Information content

Data

Certification

CE, ISO, RoHS, UL

Condition

New

Material

Plastic

Standard

T568A/T568b

Connect Resistance

20m OHM

Insulation Resistance

<=500M OHM @100 V DC

Durability Life

>750 times

Connect

RJ45 Port

Contact

8p8c

Packing

Carton

Transport Package

Carton

Specification

CAT6A

Origin

China

COLOUR

Blue.  White

CABLE MATCHED

SOILD AND STRANDED

22AWG/23AWG/24AWG

WTTHSTAND VOLTAGE

DC1000V AC700V RMS 60HZ IMIN

STORAGE

-40/+70°

OPERATION

-10/+60

MECHANICAL

PLASTICMATERIAL

NEW PC

GOLD PINS

PHOSPHOR BRONZE, GOLD PLATING 3U''

RJ45 CONTACT LIFE

750 TIMES MIN

IDCTERMINALLUFE

250 TIMES MIN
