Ningbo Betterbell Telecommunication Equipment Co., Ltd. (BTBL), founded in 2002 and located in Ningbo, China, enjoys convenient transportation, with close proximity to Ningbo and Shanghai seaports as well as major airports. We specialize in the R&D and manufacturing of structured cabling products, with core offerings including Toolless Plugs, Keystone Jacks, and Patch Panels, widely applied in data centers, office networks, and industrial communications. BTBL holds independent intellectual property rights and import/export licenses, and is committed to delivering high-quality, high-performance connectivity solutions to customers worldwide.

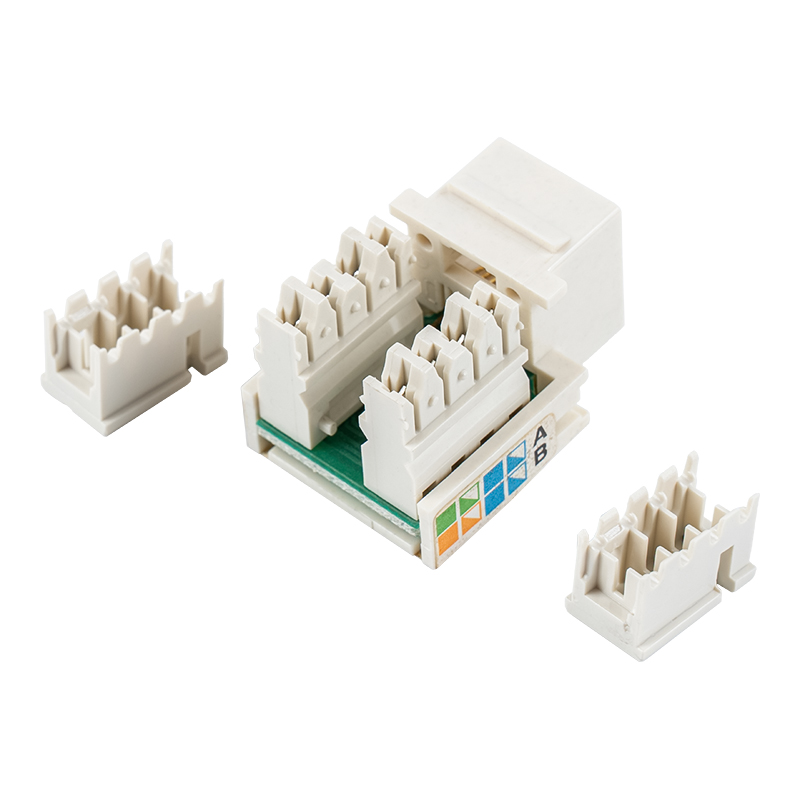

The Cat6 Unshielded 90° Keystone Jack (with double dust covers) is an unshielded Cat6 RJ45 modular female connector designed specifically for structured cabling systems. Its 90° angle allows for compact cabling in racks, patch panels, or front panels, preventing excessive stress on cables at corners. The housing is made of flame-retardant PC (UL94-V0) material, and the contacts are phosphor bronze with gold plating, ensuring low contact resistance (≤20mΩ) and high insulation resistance (≥250MΩ@100VDC). The product is certified by multiple international standards including CE, ISO, RoHS, and UL, complies with TIA-568A/B standards, supports 22-24AWG (single strand/twisted) copper wire, and has a mating life of ≥750 cycles.
Advantages:
1. Durable Lifespan: IDC contact life ≥750 cycles, meeting the demands of frequent mating in industrial applications. 2. Wide operating temperature range: Storage temperature -40℃ to +70℃, operating temperature -10℃ to +60℃, suitable for various environments (computer rooms, industrial sites, etc.).
3. Multiple certifications: Fully compliant with CE, ISO, RoHS, and UL, meeting international safety and environmental standards.
4. Strong compatibility: Supports Cat6UTP/FTP and backward compatible with Cat5e, adaptable to 22-24AWG single-strand or stranded cables.
5. Flame-retardant material: The outer shell PC (UL94-V0) has flame-retardant properties, improving overall safety.
